Usage

Once the requirements are in place, any modern web client, programming packages with TLS support, etc. can be used to access the APIs. We list examples using Microsoft Edge (Chromium-based) web browser, and Python’s request library, with hostnames kme1 and kme2 indicating the corresponding KMEs that sae1 and sae2 can authenticate respectively.

Web Browser

In this web browser example, the SAE key-certificate pair together with the root CA is already installed in the certificate manager used by the web browser for the first example.

We type the URL, https://kme1/api/v1/keys/sae2/status to get the status of the connection between KME1 to the KME that handles SAE2 which is KME2 in this example. Before the connection continues, the correct certificate needs to be presented to the server for authentication.

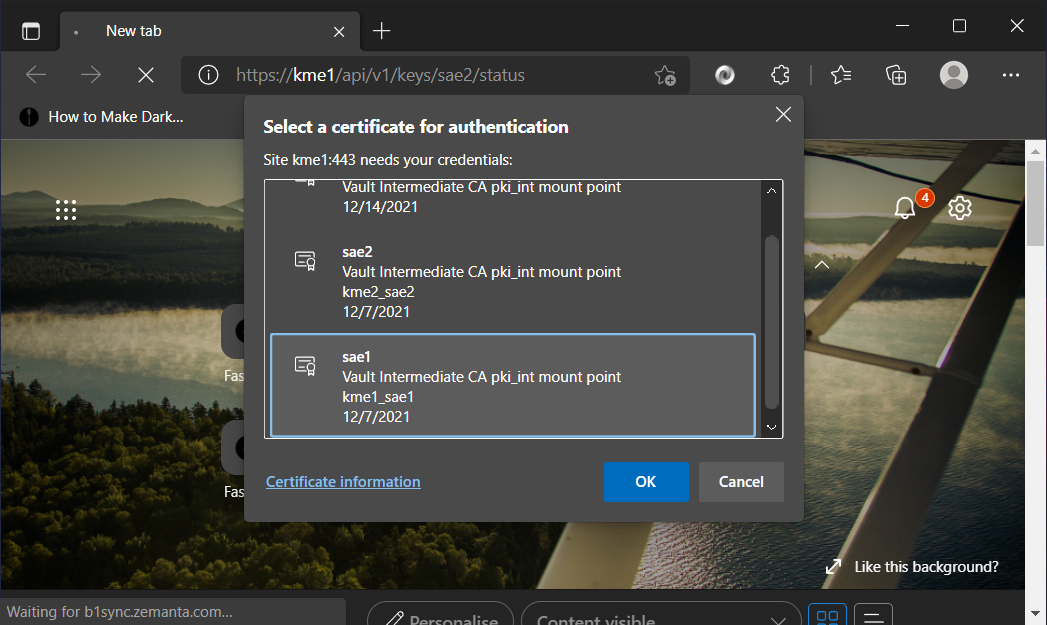

The web browser prompts which certificate to use to do mutual authentication.

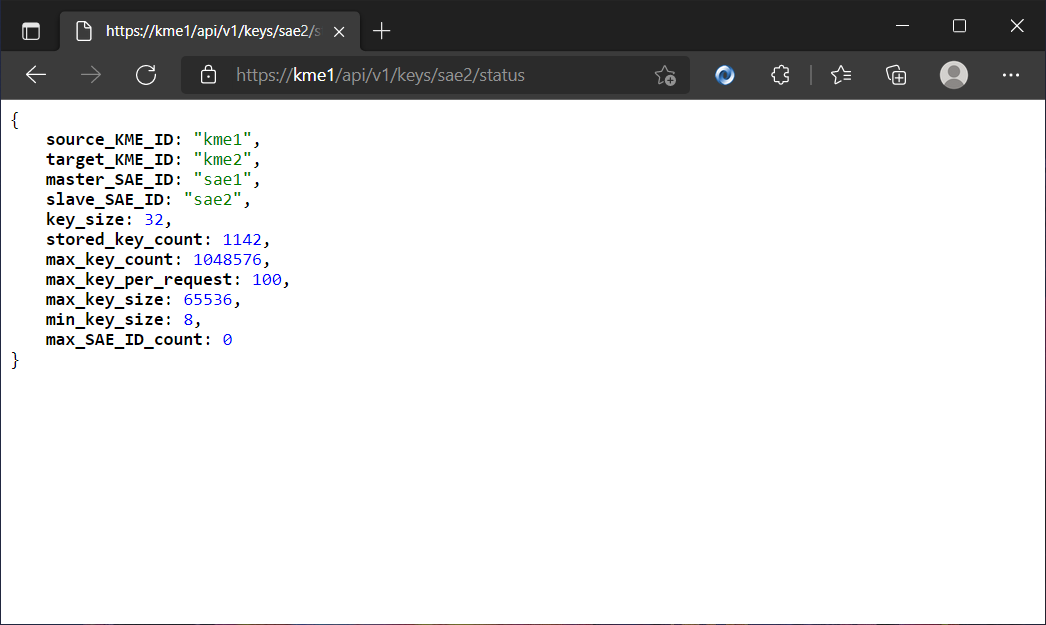

After authentication, we receive the response of the GET status method. The default key size is 32 bits and other limits are readable here.

To request two keys of length 256 bits to use in communicating to sae2, we use the Get Key method by send the URL, https://kme1/api/v1/keys/sae2/enc_keys?number=2&size=256.

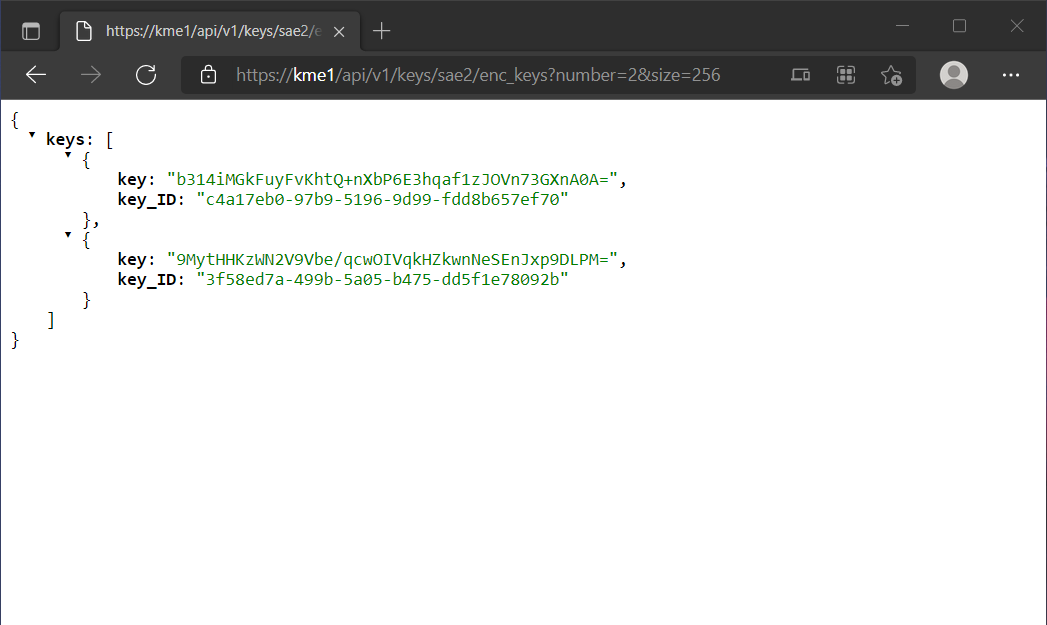

Response from kme1 to sae1 with 2 keys of length 256 bits each.

The keys are returned in a key container formatted using JSON. The keys are encoded in base64 which pads the final character using = if the total number of bits is not a multiple of 6 (2^6 = 64). Together with the key is the corresponding key_ID that has to be notified to sae2 for him/her to retrive his/her key from kme2. If the options number and size are not defined, kme1 will return the default one key with 32 bits.

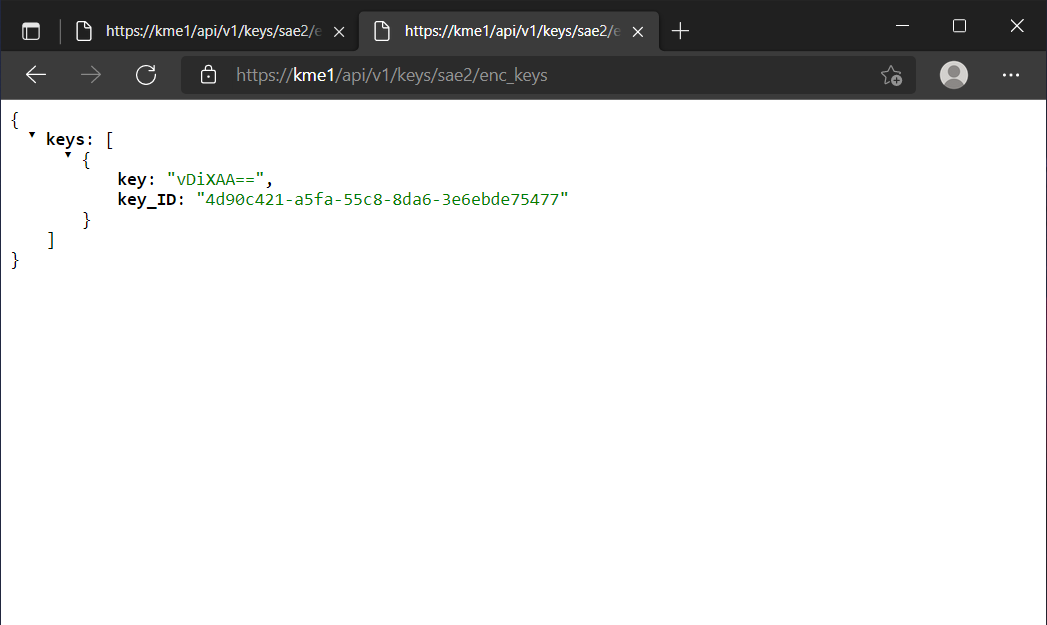

Without any options, the kme1 returns one key the size of 32 bits.

Now sae1 has 3 keys with their corresponding key_IDs. The key_IDs are communicated to sae2 which then calls the Get key with Key ID method.

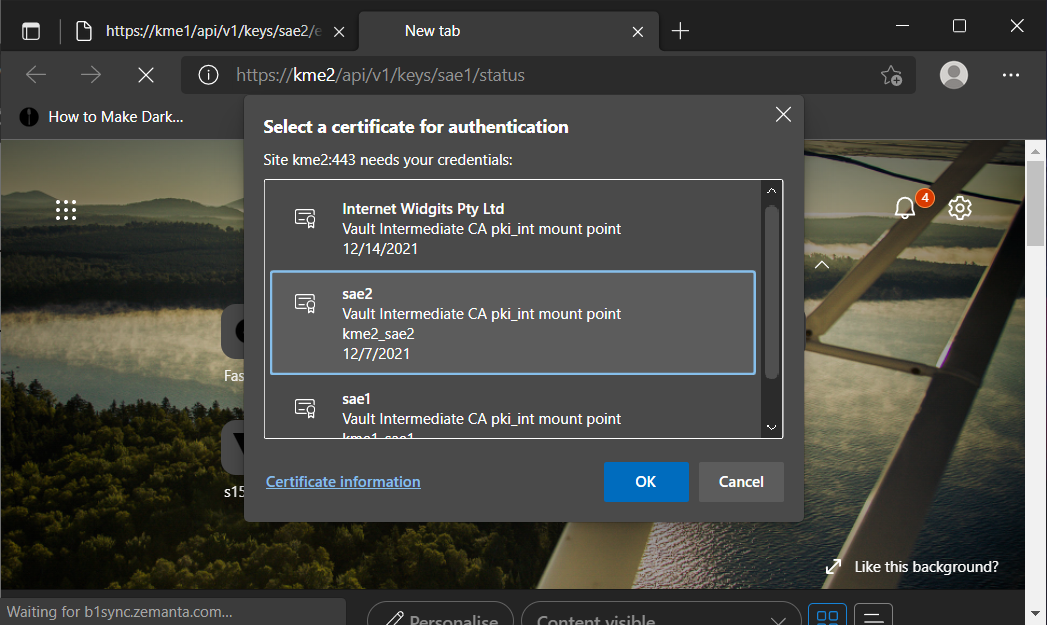

The web browser prompts which certificate to use to do mutual authentication for sae2 and kme2.

Now we identify as sae2 itself sae2 certificate to kme2. With the Get method we send the URL https://kme2/api/v1/keys/sae1/dec_keys?key_ID=3f58ec7a-499b-5a05-b475-dd5f1e78092b. With the Get method we can only request one key at a time.

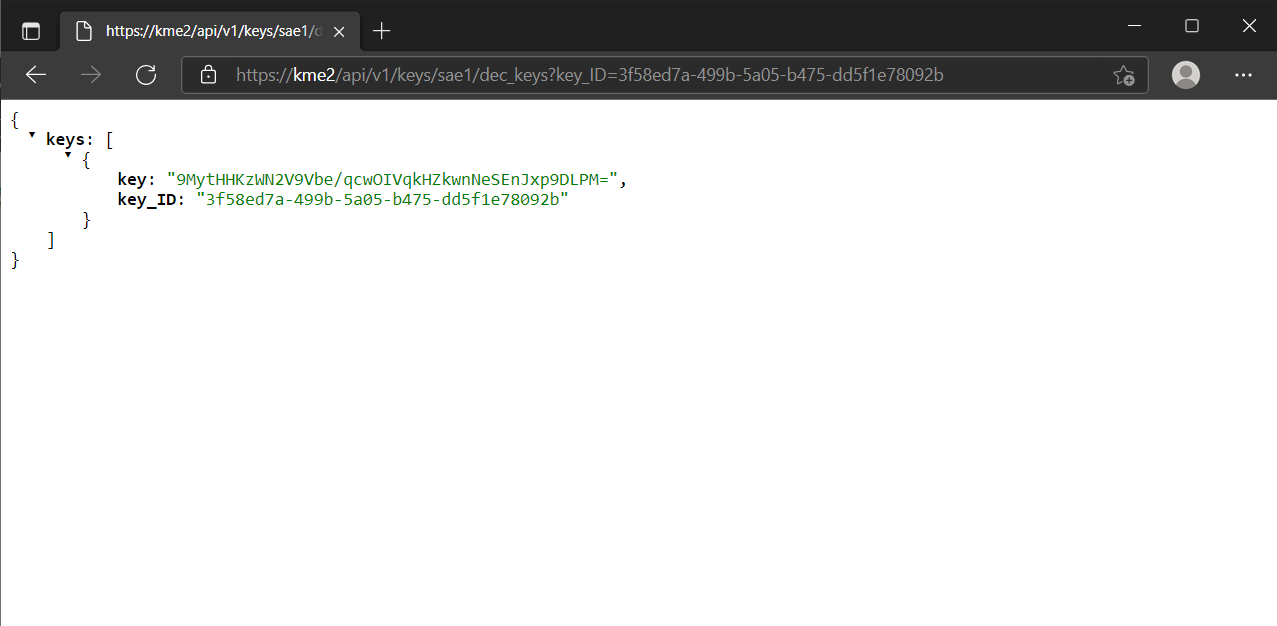

sae2 retrives the key from KME2.

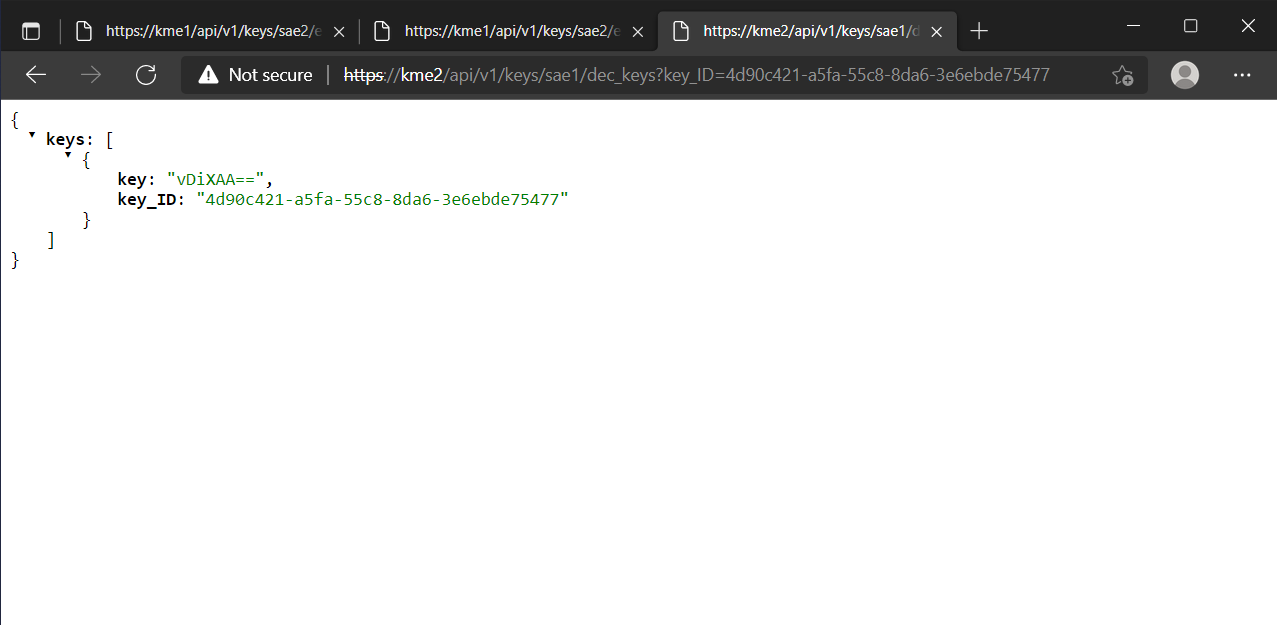

sae2 retrives the another key from KME2. https://kme2/api/v1/keys/sae1/dec_keys?key_ID=4d90c421-a5fa-55c8-8da6-3e6ebde75477

Once the key is retrived, it is deleted from KME2 and a subsequent call is made, an error is reported that the key has been consumed.

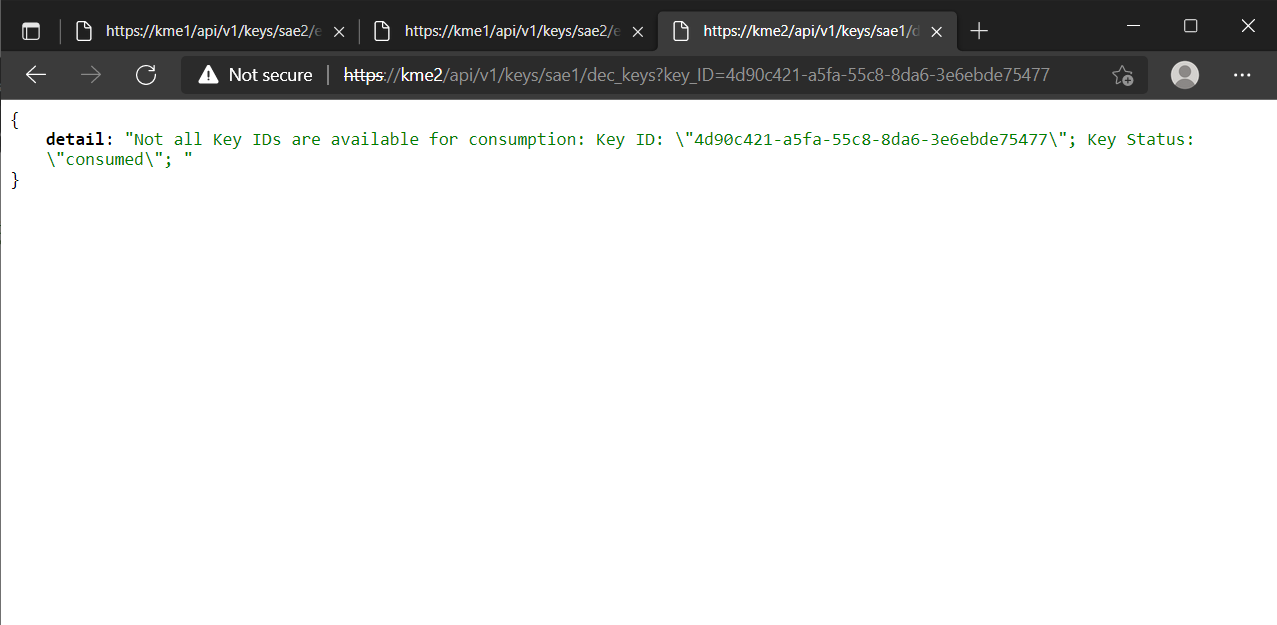

sae2 tries to retrives the same key again from KME2. https://kme2/api/v1/keys/sae1/dec_keys?key_ID=4d90c421-a5fa-55c8-8da6-3e6ebde75477

With this, sae1 and sae2 both share a set of QKD keys that they can use to communicate with each other.

Python

In this Python 3 example, the key-certificate pair is in a PEM format in the same directory as that the commands are executed in. Some packages to install first:

pip install requests python-certifi-win32

In python, the requests module can be used to dispatch GET/POST calls without a web browser GUI. There are also several ways to do client-side verification of server: here we load the KME’s root CA certificate into the Microsoft certificate store as a trusted CA on Windows, and load this store into Python using python-certifi-win32.

An example script to interface with the API:

import requests
cert_path = '/path/to/cert'
key_path = '/path/to/key'

status_url = 'https://kme1/api/v1/keys/sae2/status'
print('Checking connection to kme1...')
response = requests.get(status_url, cert=(cert_path,key_path))
print('Connection to kme1 OK.')
print(response.content)

get_key_url = 'https://kme1/api/v1/keys/sae2/enc_keys'
response = requests.get(get_key_url, cert=(cert_path,key_path))
print(response.content)

Similarly, for a POST request,

get_key_url = 'https://kme1/api/v1/keys/sae2/enc_keys'
query = {'number': 1, 'size': 32}
response = requests.post(get_key_url, cert=(cert_path,key_path), data=query)
print(response.json())
